Hangzhou Zon Packaging Machinery Co. , Ltd
| Plaats van herkomst: | China, Zhejiang |
|---|---|
| Merknaam: | ZONPACK |
| Certificering: | CE SGS |
| Modelnummer: | Zh-A10 |
| Min. bestelaantal: | 1sets |
| Prijs: | USD7600/Set |
| Verpakking Details: | houten geval |
| Levertijd: | 10-15working dagen |
| Betalingscondities: | L/C, T/T, D/P, Western Union |
| Levering vermogen: | 99sets per maand |
| Type: | Automatische multiheadweger | Automatische Rang: | Automatisch |
|---|---|---|---|
| Gedreven Type: | elektrisch | Verleende naverkoop de dienst: | Vrije vervangstukken, Onlineondersteuning, Videotechnische ondersteuning, |
| Bestuurdersmethode: | Stepper Motor | Vultrechtervolume (L): | 1.6/2.5L |
| Snelheid: | 65bags/min | Nauwkeurigheid: | ±0.1-1.5g |
| Optie: | Te zwaar herkenningsteken/Roterende Hoogste Kegel | ||
| Markeren: | de Wegende Machine van 1.6L MultiHead,de Wegende Machine van 1.5g Multihead,1.6L automatische multiheadweger |
||

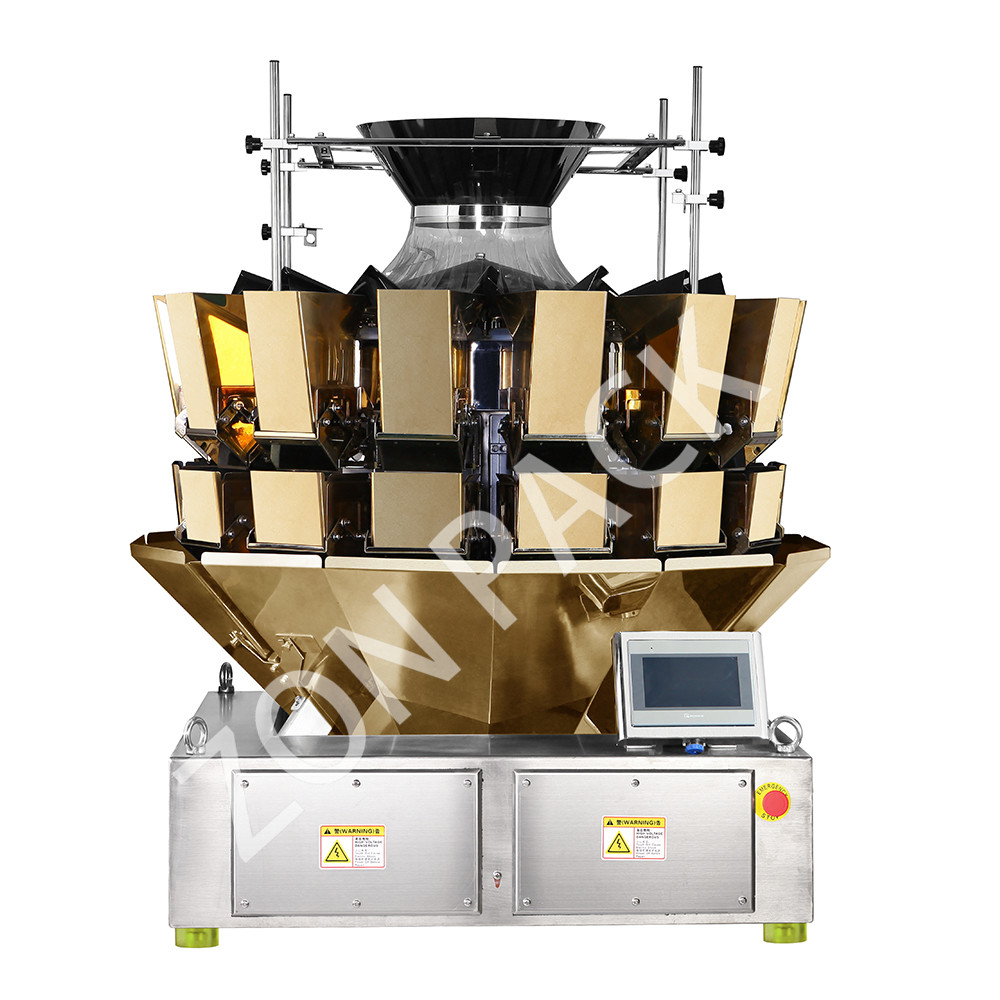

CE Automatic 2.5L / 1.6L Teflon surface combination weigher for sticky product candy sugar packing machine
Ⅰ. Main function
1. Vibrator modifies the amplitude basing on different target to make material down more equably and get higher combination rate.
2. Adopt high precision and high accurate loadcell of famous brand, resolution is improved up to 2 decimal;
3. Material collecting process system with difference automatic identified and one drag two function can remove unqualified product and deal with material drop signals from two packaging machines.
4. Components which touch the material are all manufactured with stainless steel. Hermetic and waterproof design has been adopted for preventing particles entering and cleaning easily.
5. Different authority can be set for different operator, which is for easy management.
6. 7" / 10 touch screen can meet various requirements;
Ⅱ . Parameters
| Model | ZH-A10 |
| Weighing Range | 10-2000g |
| Max Weigh Speed | 65 Bags/Min |
| Accuracy | ±0.1-1.5g |
| Hopper Volume | 1600ml/2500ml |
| Driver Method | Stepper motor |
| Option |
Timing Hopper/ Double door Hopper/ Dimple Hopper/ Printer/ Overweight Identifier / Rotary Vibrator |
| Interface | 7HMI |
| Power Parameter | 220V/ 1000W/ 50/60HZ/ 10A |
| Package Volume (mm) | 1650(L)×1120(W)×1120(H) |
Ⅲ . Application

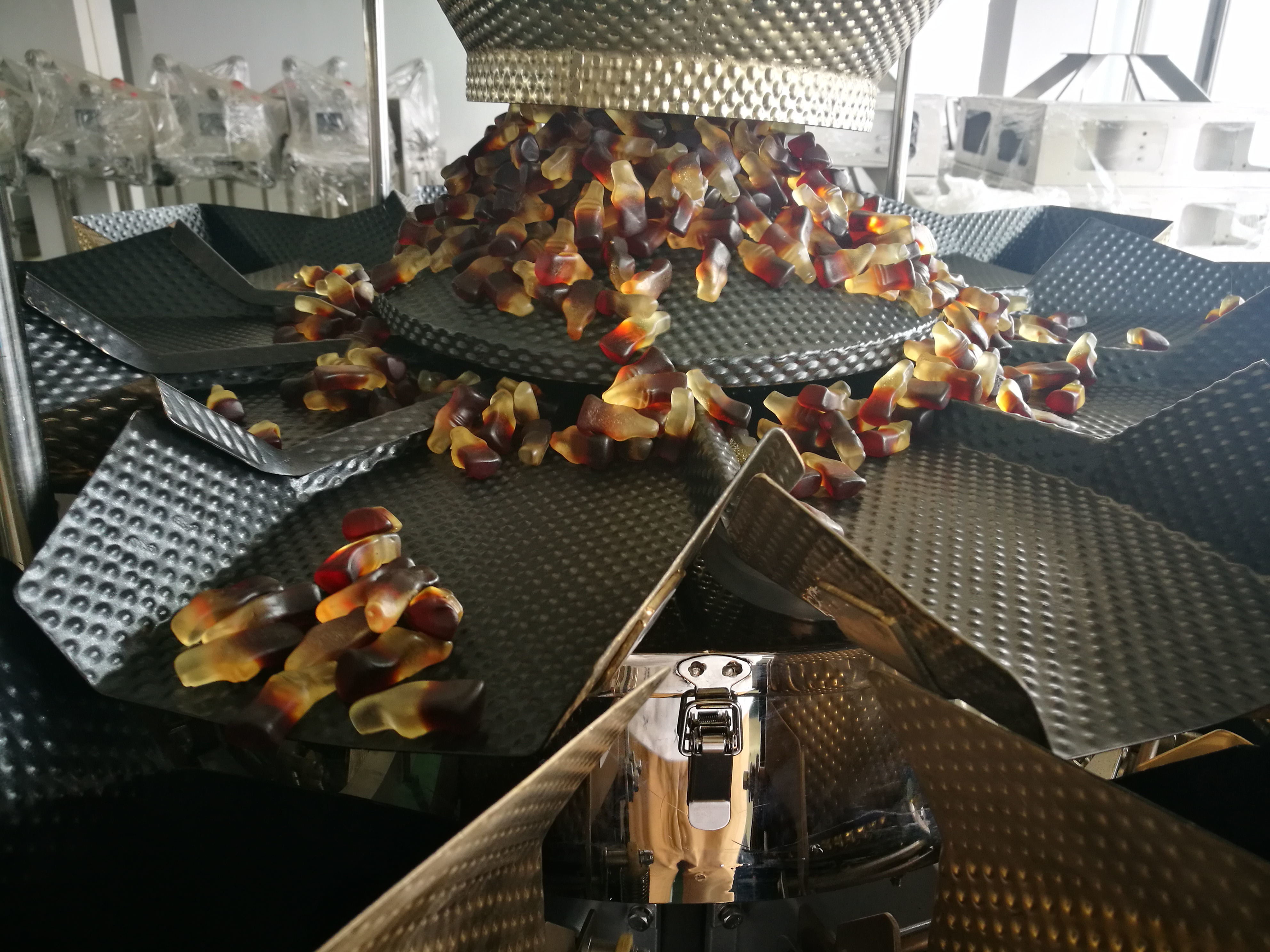

ZH-A10 is developed for weighing leisure foods such as candy, seeds, jelly, pet foods, puffy foods, pistachio, peanuts, nuts, raisins etc. and big shell nuts, hardwares, dried fruits, frozen foods, snack foods, meatballs and so on.
